Key Specifications
Capacity
50-100 m³/h
Engine
Cummins 43 kW
Feed Size< 150 mm(< 5.9 in)
Hopper2.0 m³
Length10.0 m
Power43 kW
Screen Size1200×500 mm(47.2×19.7 in)
Weight8.8 tons
TypeTracked/Vibrating
Decks2
The UYK1235 is a track-mounted vibrating screening plant that sizes crushed stone, sand and gravel into clean, saleable fractions on site.
Multi-deck screening (2-3 deck options) delivers up to 50-100 m³/h of throughput, powered by a Cummins 43 kW diesel engine.
Screening directly behind a crusher closes the production loop - oversize returns to the crusher and finished fractions stockpile without loader shuttling. Remote-controlled operation, tracked mobility and a 12-month warranty are standard on every UPSEN machine, with EU conformity documentation and OEM spare parts support for customers in 80+ countries.
Contact us for a detailed quotation and specifications sheet.
Send InquiryTell us your project · We respond within 24 hours
The UPSEN UYK1235 is a mobile aggregate screener built for continuous duty in quarrying, concrete recycling and demolition work. Its rated output is 50-100 m³/h, fed from a 2.0 m³/hopper and taking material up to < 150 mm at the inlet.
The unit travels as one load on a low-bed trailer -10.0 m and 8.8 tons -and is driven by Cummins 43 kW, so no site power supply is needed. Steel tracks let the operator reposition the plant as the working face advances.
When specifying a mobile aggregate screener, always match the throughput of the crusher with the downstream screening and stockpiling equipment, and check the maximum feed size against the material you actually run. An oversized inlet wastes fuel; an undersized one causes bridging and blocked jaws.
| Model | Capacity | Max. feed size | Total weight |
|---|---|---|---|
| UYK1235 (this model) | 50-100 m³/h | < 150 mm | 8.8 tons |

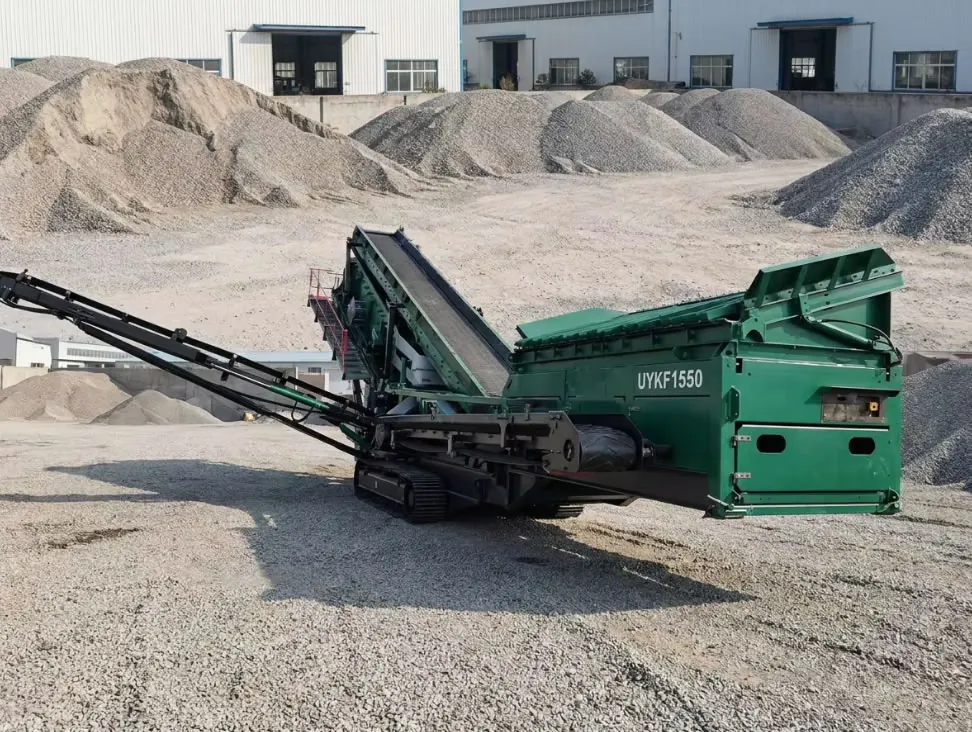

| UYK-F1550 | 200 t/h | -/td> | 25,000 kg |

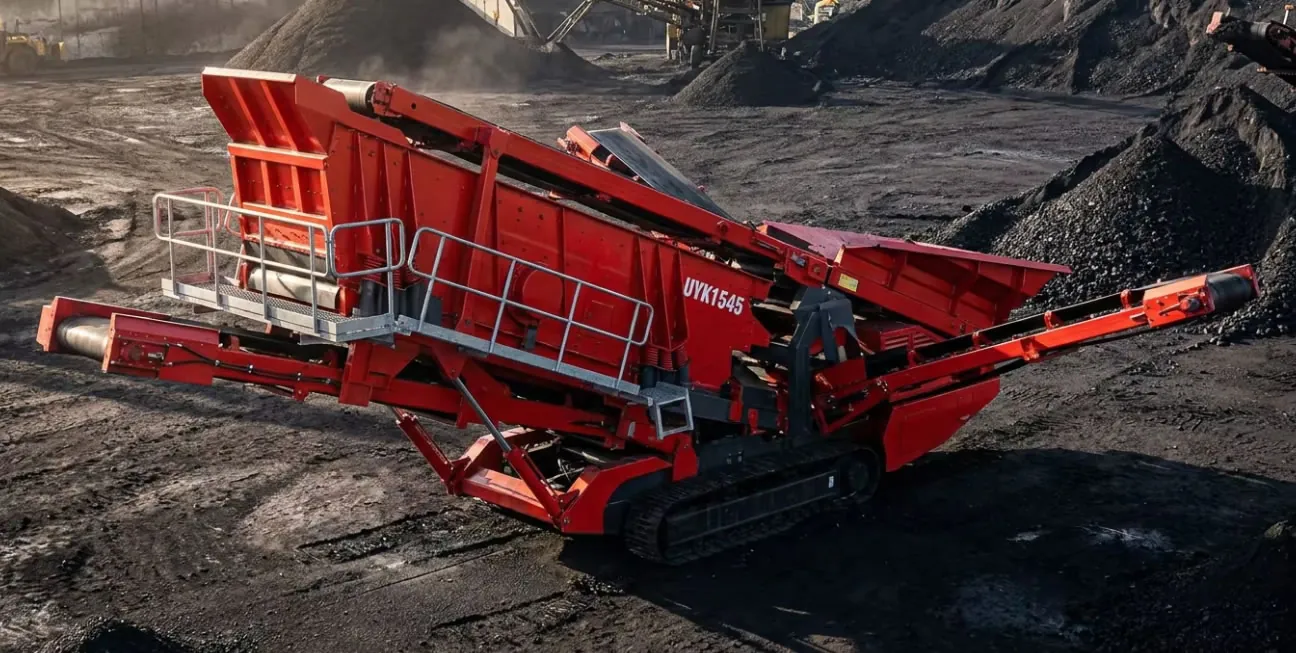

| UYK1545 | 200 t/h | -/td> | 25,000 kg |

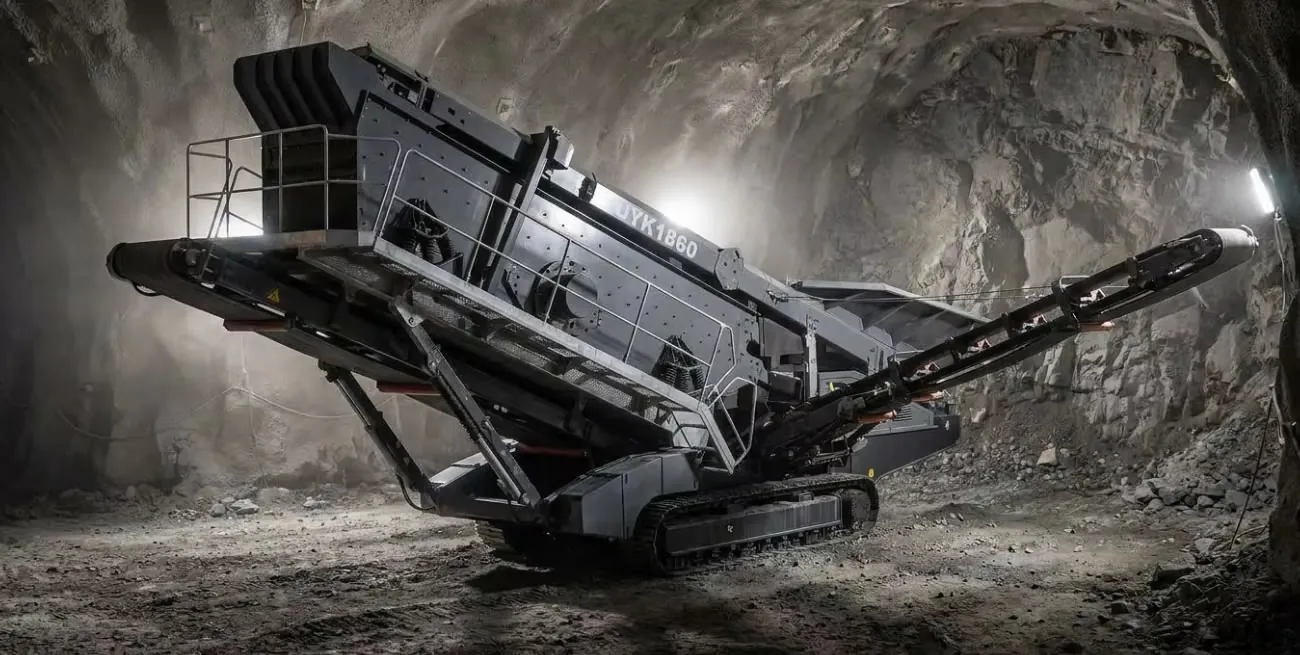

| UYK1860 | 300-400 t/h | -/td> | 35,000 kg |
Based on rated capacity, the following UPSEN units are usually specified together with the UYK1235:
Rated capacity is 50-100 m³/h. Actual output depends on the material, the feed size and the discharge setting.
The UYK1235 accepts material up to < 150 mm.
8.8 tons, transport size 10.0 m. It can be moved on a standard low-bed trailer without dismantling.
Cummins 43 kW.
Yes -UPSEN machines are supplied with EU conformity documentation and leave the factory ready for work. Delivery is by sea (container or flat rack) to major ports.
Payment is 30% T/T deposit with the balance paid before shipment; an irrevocable L/C at sight is also accepted. Quotations are FOB Qingdao and valid for 30 days. Lead time is 15 days for standard models and 30 days for customised configurations, counted from receipt of deposit. The complete machine carries a 12-month warranty from commissioning, and wear parts such as jaw plates carry 6 months with a typical service life of 800-1,200 hours depending on the feed material. Full terms are on our trade terms and service.
Yes. The YK1235 is named in the ECM Mark certificate 0P250820.HFIQW55, the ICR Polska Verification of Conformity ICR Polska/VC/H211205, the ICR Polska noise verification ICR/VC/UA260915 and the EN ISO 3744:2010 noise test report LTR20260909001. You can download the original documents from our certifications and compliance page.
Yes. On-site installation, commissioning and operator training are available. Travel and accommodation are charged at cost and there is no separate service fee. Tell us the site location and we will estimate the number of days.
A single tracked unit rarely does everything -pair the UYK1235 with the equipment below to build a working line.
Quality & compliance: ISO 9001:2015 quality management · EU conformity documentation verified by three independent bodies · EN ISO 3744:2010 noise tested, LWA 91 dB(A)
