The UTD65 is a tracked mobile conveyor (stacker) that carries crushed or screened material from the plant discharge point into clean stockpiles.
It handles up to 150-400 t/h on a QSF2.8 (45 kW) diesel drive and repositions under its own tracks as the pile grows - no foundations and no loader shuttle runs.
One conveyor behind a crusher or screener frees the wheel loader for feeding duties, cutting total plant operating cost. Remote-controlled operation, tracked mobility and a 12-month warranty are standard on every UPSEN machine, with EU conformity documentation and OEM spare parts support for customers in 80+ countries.
Contact us for a detailed quotation and specifications sheet.
Send InquiryTell us your project · We respond within 24 hours
The UPSEN UTD65 is a tracked mobile stacker conveyor built for continuous duty in quarrying, concrete recycling and demolition work. Its rated output is 150-400 t/h, fed from a — hopper and taking material up to — at the inlet.
The unit travels as one load on a low-bed trailer — 11500×2200×2630 mm and 11,000 kg — and is driven by QSF2.8 (45 kW), so no site power supply is needed. Steel tracks let the operator reposition the plant as the working face advances.
When specifying a tracked mobile stacker conveyor, always match the throughput of the crusher with the downstream screening and stockpiling equipment, and check the maximum feed size against the material you actually run. An oversized inlet wastes fuel; an undersized one causes bridging and blocked jaws.
| Model | Capacity | Max. feed size | Total weight |
|---|---|---|---|
| UTD65 (this model) | 150-400 t/h | — /td> | 11,000 kg |

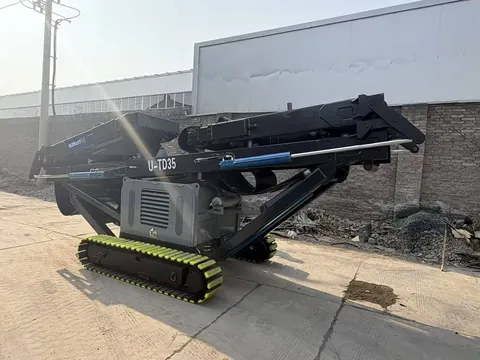

| UTD35 | 30-100 t/h | — /td> | 4,600 kg |

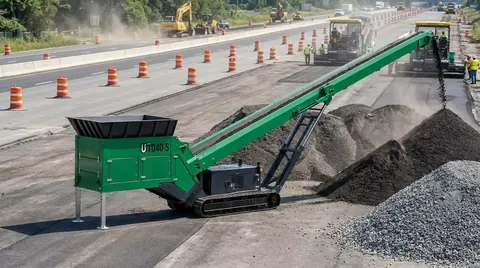

| UTD40S | 150-300 t/h | — /td> | 12,000 kg |

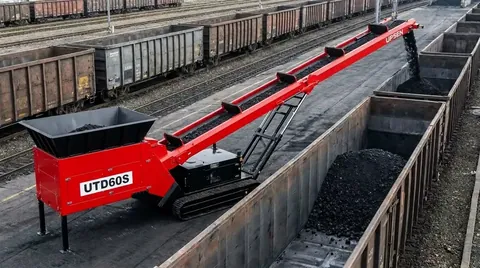

| UTD65S | 600 t/h | — /td> | 22,500 kg |
Based on rated capacity, the following UPSEN units are usually specified together with the UTD65:
Rated capacity is 150-400 t/h. Actual output depends on the material, the feed size and the discharge setting.
The UTD65 accepts material up to —
11,000 kg, transport size 11500×2200×2630 mm. It can be moved on a standard low-bed trailer without dismantling.
QSF2.8 (45 kW).
Yes — UPSEN machines are supplied with EU conformity documentation and leave the factory ready for work. Delivery is by sea (container or flat rack) to major ports.
Payment is 30% T/T deposit with the balance paid before shipment; an irrevocable L/C at sight is also accepted. Quotations are FOB Qingdao and valid for 30 days. Lead time is 15 days for standard models and 30 days for customised configurations, counted from receipt of deposit. The complete machine carries a 12-month warranty from commissioning, and wear parts such as jaw plates carry 6 months with a typical service life of 800-1,200 hours depending on the feed material. Full terms are on our trade terms and service.
Yes. The TD65 is named in the ECM Mark certificate 0P250820.HFIQW55, the ICR Polska Verification of Conformity ICR Polska/VC/H211205, the ICR Polska noise verification ICR/VC/UA260915 and the EN ISO 3744:2010 noise test report LTR20260909001. You can download the original documents from our certifications and compliance page.
Yes. On-site installation, commissioning and operator training are available. Travel and accommodation are charged at cost and there is no separate service fee. Tell us the site location and we will estimate the number of days.
A single tracked unit rarely does everything — pair the UTD65 with the equipment below to build a working line.
Quality & compliance: ISO 9001:2015 quality management · EU conformity documentation verified by three independent bodies · EN ISO 3744:2010 noise tested, LWA 91 dB(A)
