Key Specifications
Capacity
20-40 t/h
Engine
Deutz 54 kW
Feed Size< 300 mm(< 11.8 in)
Hopper2.5 m³
Length5.5 m
Output< 10 mm(< 0.4 in)
Belt Width600 mm(23.6 in)
Power54 kW
Weight3.8 tons
TypeTrailer/Hammer
The UHC600 is a track-mounted mobile impact crusher built to turn demolition concrete, asphalt (RAP) and medium-hard rock into cubical, well-graded aggregate on site.
A high-speed rotor and adjustable impact aprons shape the product in a single pass, with rated throughput of 20-40 t/h. A Deutz 54 kW diesel engine delivers the power. Feed enters through up to < 300 mm of feed.
The tracked impact crusher is the economical choice for recycling contractors and demolition firms that need saleable aggregate without hauling material off site. Remote-controlled operation, tracked mobility and a 12-month warranty are standard on every UPSEN machine, with EU conformity documentation and OEM spare parts support for customers in 80+ countries.
Contact us for a detailed quotation and specifications sheet.
Send InquiryTell us your project · We respond within 24 hours
The UPSEN UHC600 is a tracked mobile impact crusher built for continuous duty in quarrying, concrete recycling and demolition work. Its rated output is 20-40 t/h, fed from a 2.5 m³ hopper and taking material up to < 300 mm at the inlet.
The unit travels as one load on a low-bed trailer — 5.5 m and 3.8 tons — and is driven by Deutz 54 kW, so no site power supply is needed. Steel tracks let the operator reposition the plant as the working face advances.
When specifying a tracked mobile impact crusher, always match the throughput of the crusher with the downstream screening and stockpiling equipment, and check the maximum feed size against the material you actually run. An oversized inlet wastes fuel; an undersized one causes bridging and blocked jaws.
| Model | Capacity | Max. feed size | Total weight |
|---|---|---|---|
| UHC600 (this model) | 20-40 t/h | < 300 mm | 3.8 tons |

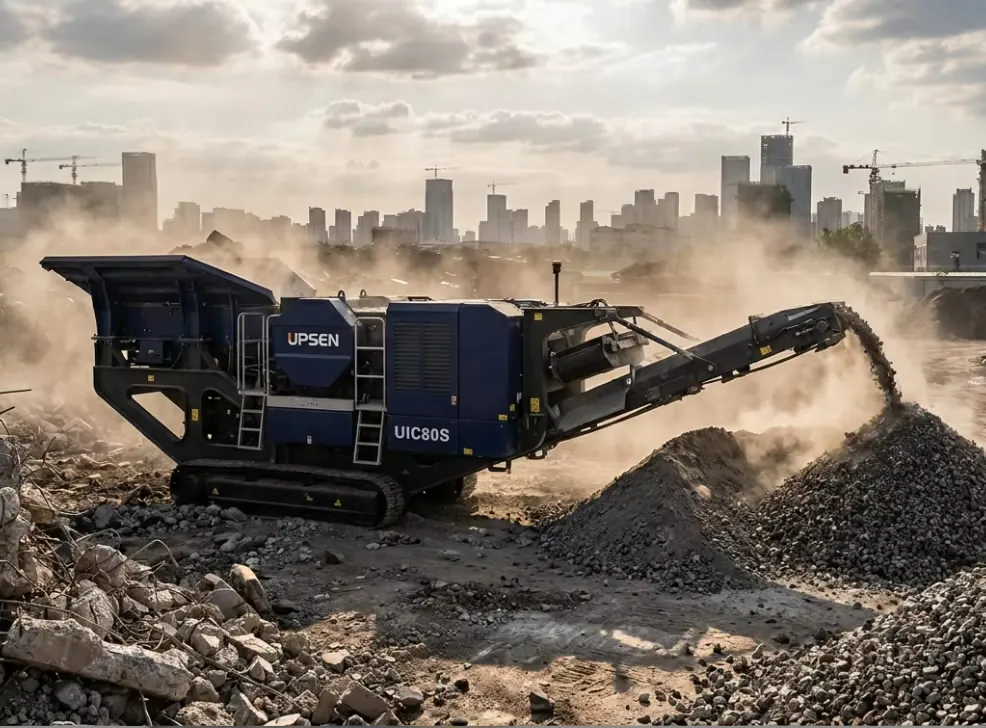

| UIC80 | 30-150 t/h | 500 mm | 24,000 kg |
| UJC106 | 150-300 t/h | 630 mm | 43,268 kg |
| UJC116 | 160-500 t/h | 650 mm | 52,500 kg |
Based on rated capacity, the following UPSEN units are usually specified together with the UHC600:
Rated capacity is 20-40 t/h. Actual output depends on the material, the feed size and the discharge setting.
The UHC600 accepts material up to < 300 mm.
3.8 tons, transport size 5.5 m. It can be moved on a standard low-bed trailer without dismantling.
Deutz 54 kW.
Yes — UPSEN machines are supplied with EU conformity documentation and leave the factory ready for work. Delivery is by sea (container or flat rack) to major ports.
Payment is 30% T/T deposit with the balance paid before shipment; an irrevocable L/C at sight is also accepted. Quotations are FOB Qingdao and valid for 30 days. Lead time is 15 days for standard models and 30 days for customised configurations, counted from receipt of deposit. The complete machine carries a 12-month warranty from commissioning, and wear parts such as jaw plates carry 6 months with a typical service life of 800-1,200 hours depending on the feed material. Full terms are on our trade terms and service.
The HC600 is not individually named in the conformity documents we currently publish, so we do not claim coverage we cannot show. Tell us your destination market and we will confirm in writing which document applies to this model before you order. The documents we do publish are listed on our certifications and compliance page.
Yes. On-site installation, commissioning and operator training are available. Travel and accommodation are charged at cost and there is no separate service fee. Tell us the site location and we will estimate the number of days.
A single tracked unit rarely does everything — pair the UHC600 with the equipment below to build a working line.
Quality & compliance: ISO 9001:2015 quality management · EU conformity documentation verified by three independent bodies · EN ISO 3744:2010 noise tested, LWA 91 dB(A)
