The UIC80 is a track-mounted mobile impact crusher built to turn demolition concrete, asphalt (RAP) and medium-hard rock into cubical, well-graded aggregate on site.
A high-speed rotor and adjustable impact aprons shape the product in a single pass, with rated throughput of 3 m³. A Cummins QSF5.9/154 kW/210 HP diesel engine delivers the power. Feed enters through up to 860×720 mm of feed.
The tracked impact crusher is the economical choice for recycling contractors and demolition firms that need saleable aggregate without hauling material off site. Remote-controlled operation, tracked mobility and a 12-month warranty are standard on every UPSEN machine, with EU conformity documentation and OEM spare parts support for customers in 80+ countries.
Contact us for a detailed quotation and specifications sheet.
Send InquiryTell us your project · We respond within 24 hours
The UPSEN UIC80 is a tracked mobile impact crusher built for continuous duty in quarrying, concrete recycling and demolition work. Its rated output is 30-150 t/h, fed from a 3 m³ hopper and taking material up to 500 mm at the inlet.
The unit travels as one load on a low-bed trailer — 11.6×2.3×2.7 m (working) and 24,000 kg — and is driven by Cummins QSF5.9/154 kW/210 HP, so no site power supply is needed. Steel tracks let the operator reposition the plant as the working face advances.
When specifying a tracked mobile impact crusher, always match the throughput of the crusher with the downstream screening and stockpiling equipment, and check the maximum feed size against the material you actually run. An oversized inlet wastes fuel; an undersized one causes bridging and blocked jaws.
| Model | Capacity | Max. feed size | Total weight |
|---|---|---|---|
| UIC80 (this model) | 30-150 t/h | 500 mm | 24,000 kg |

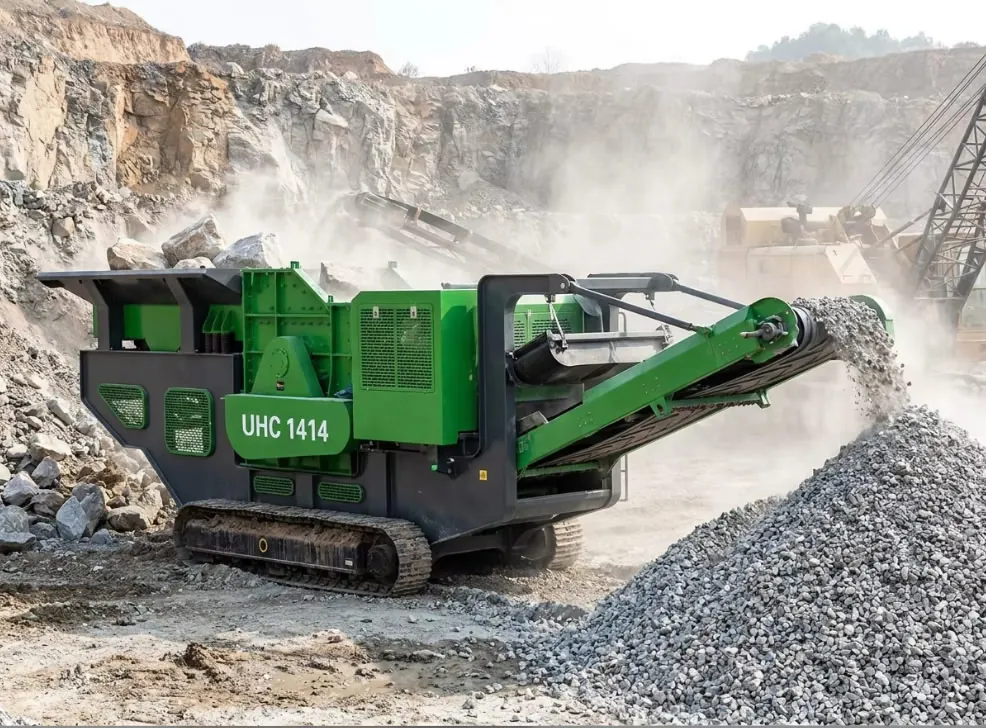

| UHC600 | 20-40 t/h | < 300 mm | 3.8 tons |
| UJC106 | 150-300 t/h | 630 mm | 43,268 kg |
| UJC116 | 160-500 t/h | 650 mm | 52,500 kg |
Based on rated capacity, the following UPSEN units are usually specified together with the UIC80:
Rated capacity is 30-150 t/h. Actual output depends on the material, the feed size and the discharge setting.
The UIC80 accepts material up to 500 mm.
24,000 kg, transport size 11.6×2.3×2.7 m (working). It can be moved on a standard low-bed trailer without dismantling.
Cummins QSF5.9/154 kW/210 HP.
Yes — UPSEN machines are supplied with EU conformity documentation and leave the factory ready for work. Delivery is by sea (container or flat rack) to major ports.
Payment is 30% T/T deposit with the balance paid before shipment; an irrevocable L/C at sight is also accepted. Quotations are FOB Qingdao and valid for 30 days. Lead time is 15 days for standard models and 30 days for customised configurations, counted from receipt of deposit. The complete machine carries a 12-month warranty from commissioning, and wear parts such as jaw plates carry 6 months with a typical service life of 800-1,200 hours depending on the feed material. Full terms are on our trade terms and service.
The IC80 is not individually named in the conformity documents we currently publish, so we do not claim coverage we cannot show. Tell us your destination market and we will confirm in writing which document applies to this model before you order. The documents we do publish are listed on our certifications and compliance page.
Yes. On-site installation, commissioning and operator training are available. Travel and accommodation are charged at cost and there is no separate service fee. Tell us the site location and we will estimate the number of days.
A single tracked unit rarely does everything — pair the UIC80 with the equipment below to build a working line.
Quality & compliance: ISO 9001:2015 quality management · EU conformity documentation verified by three independent bodies · EN ISO 3744:2010 noise tested, LWA 91 dB(A)
