UMS250 Mobile Shredder for Metal and Wood Recycling

Name: UMS250 Mobile Shredder for Metal and Wood Recycling | UPSEN
Brand: UPSEN
SKU: UMS250
Availability: InStock

Product Description

The UMS250 is a tracked mobile shredder that uses low-speed, high-torque twin-shaft cutting to reduce bulky, tough and metal-bearing waste into recyclable fractions.

It processes C&D waste, wood and biomass, municipal solid waste and, depending on model, scrap metal and end-of-life vehicles - rated up to 80-130 t/h. A Cummins QSB5.9-154 kW / 210 HP (EURO 3) or Perkins 140 kW / 190 HP (EURO V) engine provides the drive power. Operating weight is about 18,000 kg.

Output size is set by the screen configuration, and an optional over-belt magnet recovers ferrous metal from the output - the first step of any metal recycling line. Remote-controlled operation, tracked mobility and a 12-month warranty are standard on every UPSEN machine, with EU conformity documentation and OEM spare parts support for customers in 80+ countries.

Twin-shaft cutting handles wood, tyres, MSW, C&D and scrap metal
Optional over-belt magnet recovers ferrous metal
Screen configuration controls final output size
Electric-drive option available for indoor sites

Key Specifications

Engine

Cummins QSB5.9-154 kW / 210 HP (EURO 3)
Perkins 140 kW / 190 HP (EURO V)

Total Weight

18,000 kg

Working Size

8670×200×640 mm(341.3×7.9×25.2 in)

Cutter MaterialHARDOX 500/NM500

Feed Port Size1200×500 mm(47.2×19.7 in)

Hopper Size1500×800 mm(59.1×31.5 in)

Shaft Diameter680 mm(26.8 in)

Shaft Length1550 mm(61 in)

Rotating Speed0-40 r/min

Gear Reducer Torque160,000 N/M

Hydraulic SystemClosed circuit (Linde pump/valve/motor)

Main ConveyorB800×000 mm(B31.5×0 in)

Stacking Height2800 mm(110.2 in)

Iron SeparatorB650×000

Capacity (C&D Debris)80-130 t/h

Capacity (Wood Waste)15-20 t/h

Capacity (MSW)15-25 t/h

Transport Size7860×200×650 mm(309.4×7.9×25.6 in)

Detail Images

UMS250 at a glance

The UPSEN UMS250 is a tracked mobile shredder built for continuous duty in quarrying, concrete recycling and demolition work. Its rated output is - fed from a 1500×800 mm hopper and taking material up to 1200×500 mm at the inlet.

The unit travels as one load on a low-bed trailer -7860×200×650 mm and 18,000 kg -and is driven by Cummins QSB5.9-154 kW / 210 HP (EURO 3) or Perkins 140 kW / 190 HP (EURO V), so no site power supply is needed. Steel tracks let the operator reposition the plant as the working face advances.

When specifying a tracked mobile shredder, always match the throughput of the crusher with the downstream screening and stockpiling equipment, and check the maximum feed size against the material you actually run. An oversized inlet wastes fuel; an undersized one causes bridging and blocked jaws.

Typical applications

Construction and demolition waste (C&D)
Municipal solid waste and bulky waste
Wood waste, pallets and green waste
Scrap metal and light steel

How the UMS250 compares

Model	Capacity	Max. feed size	Total weight
UMS250 (this model)	-/td>	1200×500 mm	18,000 kg

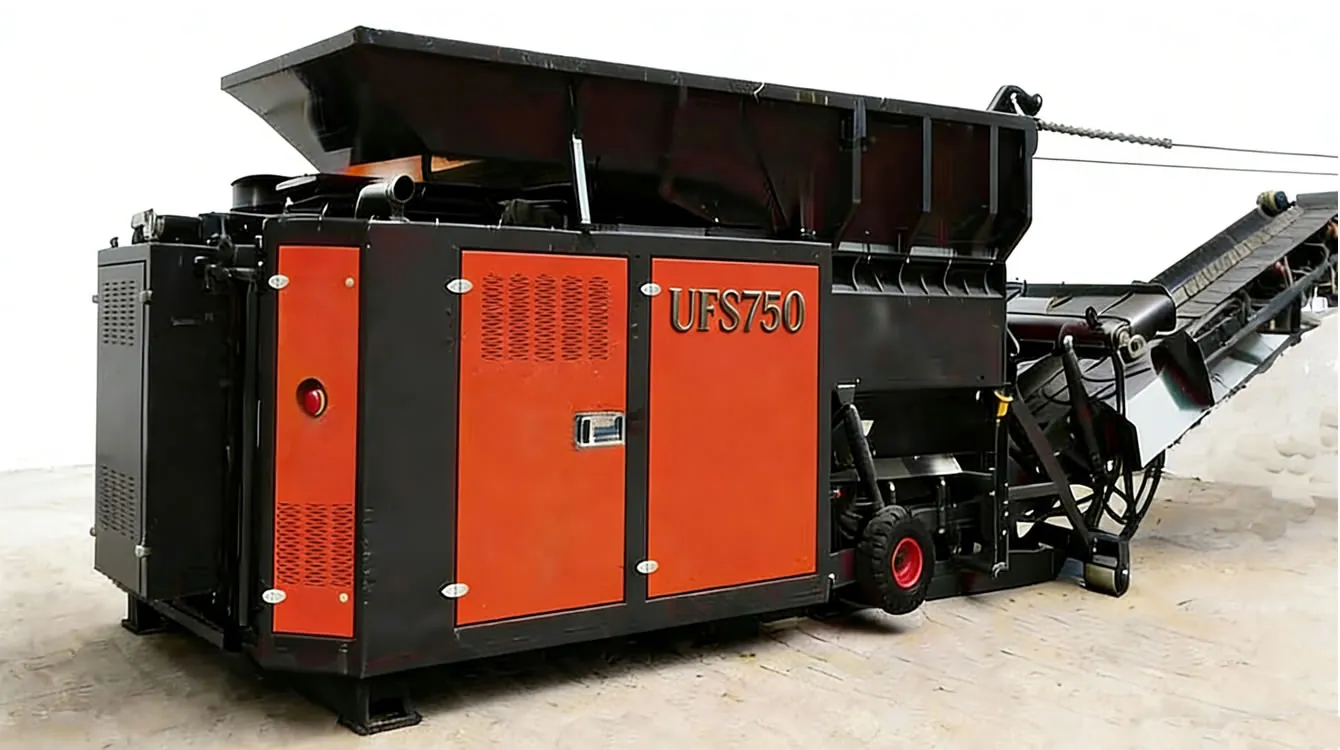

UFS750	20-150 t/h	750 mm	12 tons
UMS750	-/td>	5100×300 mm (Hydraulic lifting)	28,000 kg
UMS950	-/td>	2000×500 mm	49,000 kg

Recommended line-up for the UMS250

Based on rated capacity, the following UPSEN units are usually specified together with the UMS250:

UYK221 -mobile scalping screener · 30-80 t/h
UTD35 -tracked mobile stacker conveyor · 30-100 t/h

Frequently asked questions

What is the capacity of the UMS250?

Rated capacity is - Actual output depends on the material, the feed size and the discharge setting.

What is the maximum feed size?

The UMS250 accepts material up to 1200×500 mm.

How big and how heavy is the UMS250?

18,000 kg, transport size 7860×200×650 mm. It can be moved on a standard low-bed trailer without dismantling.

What drives the machine?

Cummins QSB5.9-154 kW / 210 HP (EURO 3) or Perkins 140 kW / 190 HP (EURO V).

Does the UMS250 come with EU conformity documentation, and how is it delivered?

Yes -UPSEN machines are supplied with EU conformity documentation and leave the factory ready for work. Delivery is by sea (container or flat rack) to major ports.

What are the payment, lead time and warranty terms?

Payment is 30% T/T deposit with the balance paid before shipment; an irrevocable L/C at sight is also accepted. Quotations are FOB Qingdao and valid for 30 days. Lead time is 15 days for standard models and 30 days for customised configurations, counted from receipt of deposit. The complete machine carries a 12-month warranty from commissioning, and wear parts such as jaw plates carry 6 months with a typical service life of 800-1,200 hours depending on the feed material. Full terms are on our trade terms and service.

Is the MS250 named in the EU conformity documents?

Yes. The MS250 is named in the ECM Mark certificate 0P250820.HFIQW55, the ICR Polska Verification of Conformity ICR Polska/VC/H211205, the ICR Polska noise verification ICR/VC/UA260915, the UDEM Attestation of Conformity M.2025.206.C128082 and the EN ISO 3744:2010 noise test report LTR20260909001. You can download the original documents from our certifications and compliance page.

Do you send an engineer for installation and operator training?

Yes. On-site installation, commissioning and operator training are available. Travel and accommodation are charged at cost and there is no separate service fee. Tell us the site location and we will estimate the number of days.
